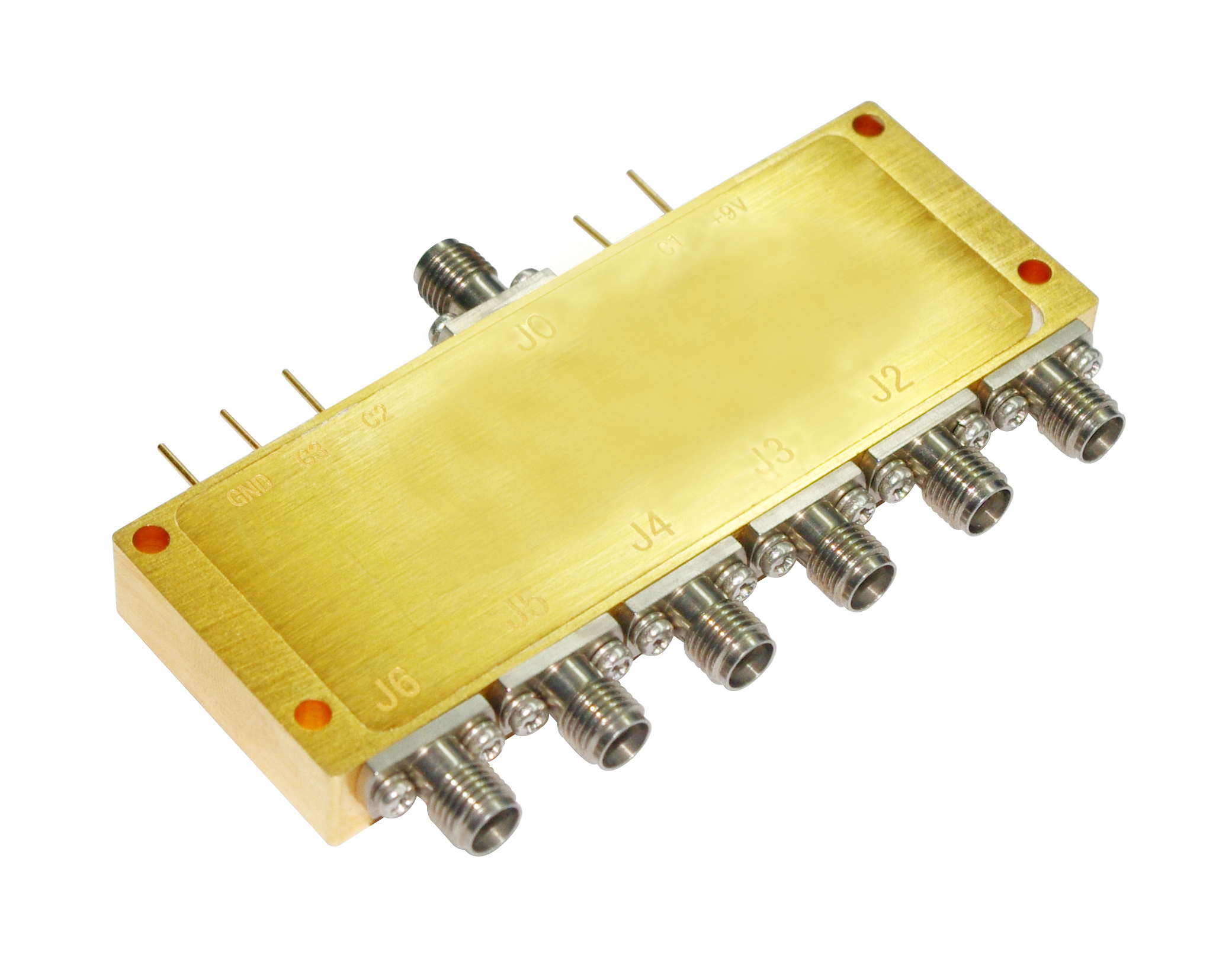

SP6T

PIN Diode Switches High Power PIN Diode Switches Waveguide High Power Switches

SP6T

Features

  • Covers the 1MHz to 40GHz Frequency Range

  • Low Insertion Loss

  • High Isolation

  • Custom Designs Available

Applications

  • Communication Systems

  • Radar Systems

SPST SPDT SP3T SP4T SP5T SP6T SP7T SP8T

Related Documents>

Part Number
Type
Freq. Range
Insertion Loss
VSWR
Isolation
Switching Speed
Power
Casing
PDF
Unit
~
GHz
dB.Max
Max
dB.Min
ns
W
~
  • AWSP6TA-1M-1GA
    Absorptive
    0.001~1
    1.8
    1.5
    80
    500
    1
    PDF
  • AWSP6TA-20M-3GA
    Absorptive
    0.02~3
    2.5
    1.5
    80
    100
    1
    PDF
  • AWSP6TA-1M-4.5GA
    Absorptive
    0.001~4.5
    3.2
    2
    80
    500
    1
    PDF
  • AWSP6TA-0.8-6GA
    Absorptive
    0.8~6
    1.8
    1.5
    60
    100
    1
    PDF
  • AWSP6TA-0.8-20GA
    Absorptive
    0.8~20
    3.5
    2
    60
    100
    1
    PDF
  • AWSP6TA-1-2GA
    Absorptive
    1~2
    1.5
    1.5
    80
    100
    1
    PDF
  • AWSP6TA-1-18GA
    Absorptive
    1~18
    3.5
    2
    60
    100
    1
    PDF
  • AWSP6TA-1-20GA
    Absorptive
    1~20
    3.5
    2
    60
    100
    1
    PDF
  • AWSP6TA-2-4GA
    Absorptive
    2~4
    1.8
    1.5
    80
    100
    1
    PDF
  • AWSP6TA-2-8GA
    Absorptive
    2~8
    2.8
    1.5
    80
    100
    1
    PDF
  • AWSP6TA-2-18GA
    Absorptive
    2~18
    3.5
    2
    60
    100
    1
    PDF
  • AWSP6TA-2-20GA
    Absorptive
    2~20
    3.5
    2
    60
    100
    1
    PDF
  • AWSP6TA-6-12GA
    Absorptive
    6~12
    3
    1.5
    80
    100
    1
    PDF
  • AWSP6TR-1M-1GA
    Reflective
    0.001~1
    1.6
    1.5
    80
    500
    1
    PDF
  • AWSP6TR-20M-3GA
    Reflective
    0.02~3
    2.2
    1.5
    80
    100
    1
    PDF
  • AWSP6TR-1M-4.5GA
    Reflective
    0.001~4.5
    3
    2
    80
    500
    1
    PDF
  • AWSP6TR-0.8-6GA
    Reflective
    0.8~6
    1.6
    1.5
    80
    100
    1
    PDF
  • AWSP6TR-0.8-20GA
    Reflective
    0.8~20
    3.2
    2
    60
    100
    1
    PDF
  • AWSP6TR-1-2GA
    Reflective
    1~2
    1.3
    1.5
    80
    100
    1
    PDF
  • AWSP6TR-1-18GA
    Reflective
    1~18
    3.2
    2
    60
    100
    1
    PDF
  • AWSP6TR-1-20GA
    Reflective
    1~20
    3.2
    2
    60
    100
    1
    PDF
  • AWSP6TR-2-4GA
    Reflective
    2~4
    1.6
    1.5
    80
    100
    1
    PDF
  • AWSP6TR-2-8GA
    Reflective
    2~8
    2.6
    1.5
    80
    100
    1
    PDF
  • AWSP6TR-2-18GA
    Reflective
    2~18
    3.2
    2
    60
    100
    1
    PDF
  • AWSP6TR-2-20GA
    Reflective
    2~20
    3.2
    2
    60
    100
    1
    PDF
  • AWSP6TR-6-12GA
    Reflective
    6~12
    2.8
    1.5
    80
    100
    1
    PDF
