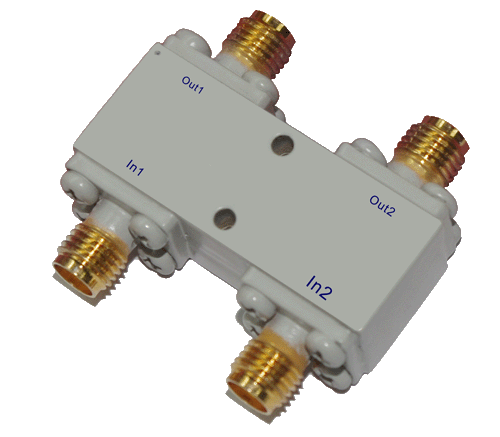

Directional Couplers Hybrids

Hybrids

Features

  • High Directivity

  • Small Size

  • Fast Delivery

  • Customization is available

Applications

  • Communication Systems

  • Radar Systems

Related Documents>

Part Number
Description
Freq. Range
Insertion Loss
Isolation
VSWR
Amplitude Balance
Phase Balance
Connector
PDF
Unit
~
GHz
dB.Max
dB.Min
Max
±dB.Max
±Deg.Max
Type
  • AWBH-0.2-0.4GA
    90°Hybrid
    0.2-0.4
    0.3
    22
    1.2
    ±0.5
    ±2°
    SMA
    PDF
  • AWBH-0.5-1GA
    90°Hybrid
    0.5-1.0
    0.3
    22
    1.2
    ±0.5
    ±2°
    SMA
    PDF
  • AWBH-0.698-2.7GA
    90°Hybrid
    0.698-2.7
    0.3
    22
    1.2
    ±0.6
    ±4°
    SMA
    PDF
  • AWBH8-0.75-1.5GA
    180°Hybrid
    0.75-1.5
    0.6
    22
    1.2
    ±0.5
    ±10°
    SMA
    PDF
  • AWBH-0.8-1GA
    90°Hybrid
    0.8-1.0
    0.3
    22
    1.2
    ±0.3
    ±3°
    SMA
    PDF
  • AWBH-1-2GA
    90°Hybrid
    1.0-2.0
    0.3
    22
    1.2
    ±0.5
    ±2°
    SMA
    PDF
  • AWBH-1-4GA
    90°Hybrid
    1.0-4.0
    0.8
    20
    1.3
    ±0.7
    ±5°
    SMA
    PDF
  • AWBH-1.1-2.5GA
    90°Hybrid
    1.1-2.5
    0.3
    22
    1.2
    ±0.3
    ±3°
    SMA
    PDF
  • AWBH-1.1-3GA
    90°Hybrid
    1.1-3.0
    0.3
    22
    1.2
    ±0.5
    ±2°
    SMA
    PDF
  • AWBH-1.4-5.2GA
    90°Hybrid
    1.4-5.2
    0.8
    20
    1.3
    ±0.7
    ±5°
    SMA
    PDF
  • AWBH-2-4GA
    90°Hybrid
    2.0-4.0
    0.3
    22
    1.2
    ±0.5
    ±2°
    SMA
    PDF
  • AWBH-2-6GA
    90°Hybrid
    2.0-6.0
    0.5
    20
    1.2
    ±0.5
    ±4°
    SMA
    PDF
  • AWBH-2-18GA
    90°Hybrid
    2.0-18.0
    1.8
    15
    1.6
    ±0.7
    ±8°
    SMA
    PDF
  • AWBH-2-40GA
    90°Hybrid
    2.0-40
    2
    11
    1.8
    ±1.5
    ±12°
    SMA
    PDF
  • AWBH-2.1-2.8GA
    90°Hybrid
    2.1-2.8
    0.3
    22
    1.2
    ±0.3
    ±3°
    SMA
    PDF
  • AWBH-2.1-5.2GA
    90°Hybrid
    2.1-5.2
    0.3
    22
    1.2
    ±0.5
    ±2°
    SMA
    PDF
  • AWBH-4-8GA
    90°Hybrid
    4.0-8.0
    0.35
    18
    1.35
    ±0.5
    ±3°
    SMA
    PDF
  • AWBH-4-18GA
    90°Hybrid
    4.0-18.0
    1.2
    15
    1.5
    ±0.7
    ±5°
    SMA
    PDF
  • AWBH-6-18GA
    90°Hybrid
    6.0-18.0
    1.2
    15
    1.5
    ±0.7
    ±5°
    SMA
    PDF
  • AWBH-7.9-9GA
    90°Hybrid
    7.9-9.0
    0.35
    20
    1.25
    ±0.5
    ±3°
    SMA
    PDF
  • AWBH8-1-2GA
    180°Hybrid
    1~2
    0.6
    22
    1.4
    ±0.5
    ±10°
    SMA
    PDF
  • AWBH8-2-4GA
    180°Hybrid
    2~4
    0.6
    20
    1.6
    ±0.5
    ±10°
    SMA
    PDF
  • AWBH8-2-18GA
    180°Hybrid
    2~18
    2
    15
    1.8
    ±1.2
    ±12°
    SMA
    PDF
  • AWBH8-4-18GA
    180°Hybrid
    4~18
    2
    15
    1.8
    ±1.2
    ±12°
    SMA
    PDF
